Mechanical room assembly

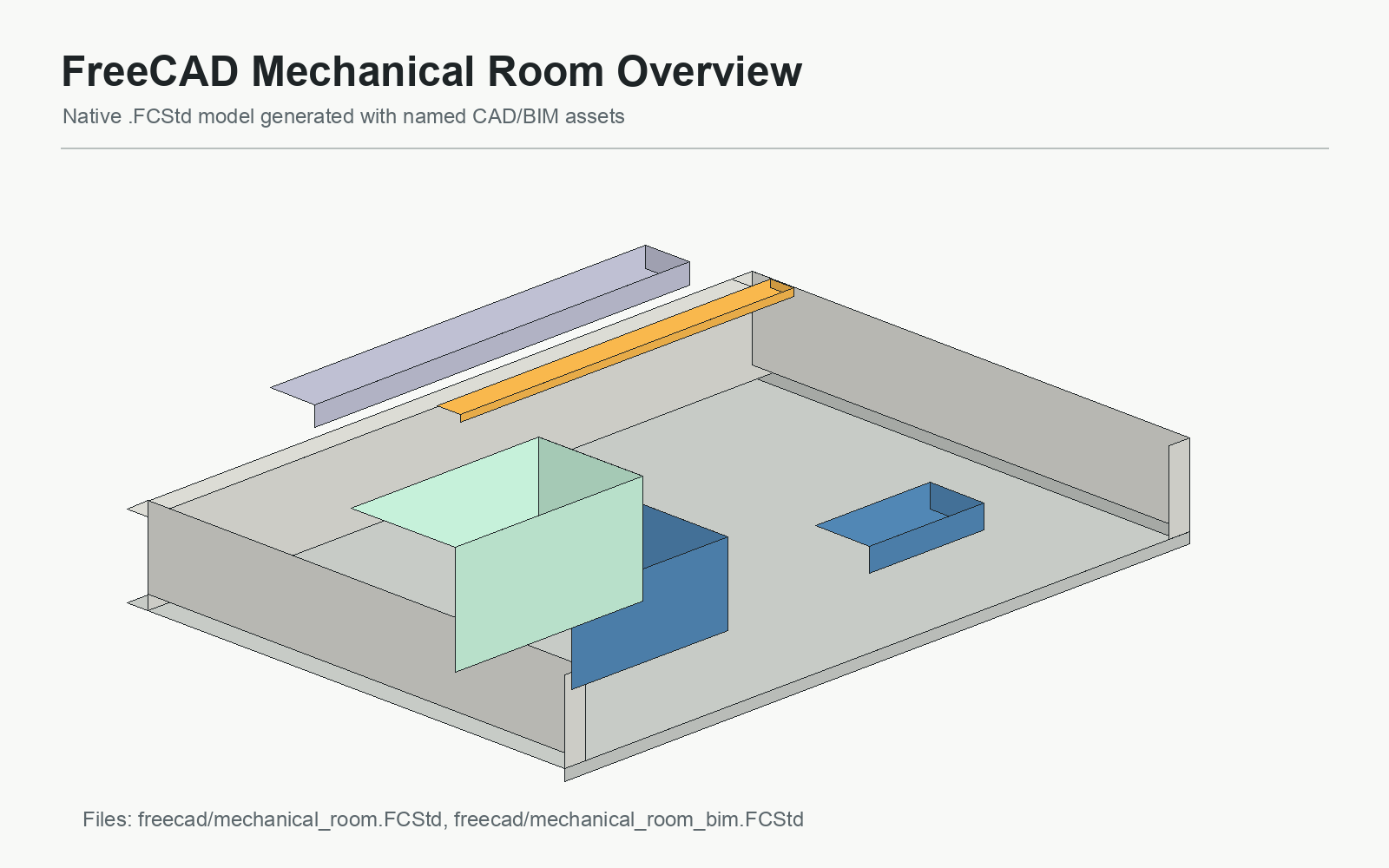

Native `.FCStd` source and BIM-organized files with stable object names, spatial hierarchy, and a STEP assembly export.
CAD/BIM asset pipeline / AI-ready geometry
AI-Ready OpenBIM Mechanical Room
A compact production-style CAD/AEC asset system with named components, parametric source geometry, BIM hierarchy, IFC validation, drawing sheets, and a reproducible GitHub handoff.
Reviewer path: Start with the README, inspect the FreeCAD
and CadQuery sources, open the IFC validation report, then review the QCAD
drawings and export index.
30
manifest-tracked assets
IFC4
FreeCAD BIM export
5
QCAD drawing sheets
51
export references
Pipeline shape
Parameterized source to validated BIM handoff.
The project proves the asset production chain a CAD/AEC AI workflow needs: source models, generated exports, metadata, drawing evidence, and validation.
Parametric asset library

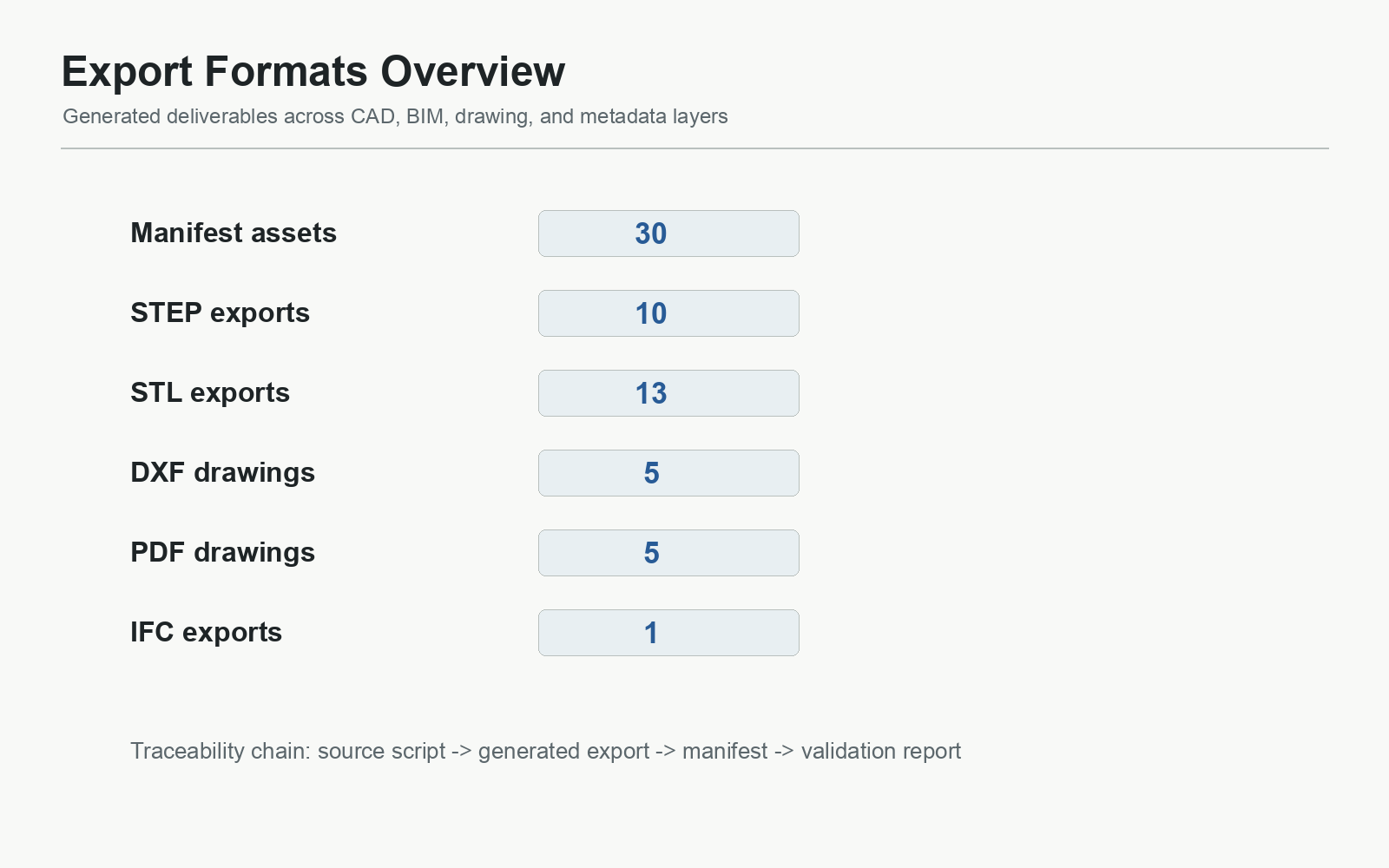

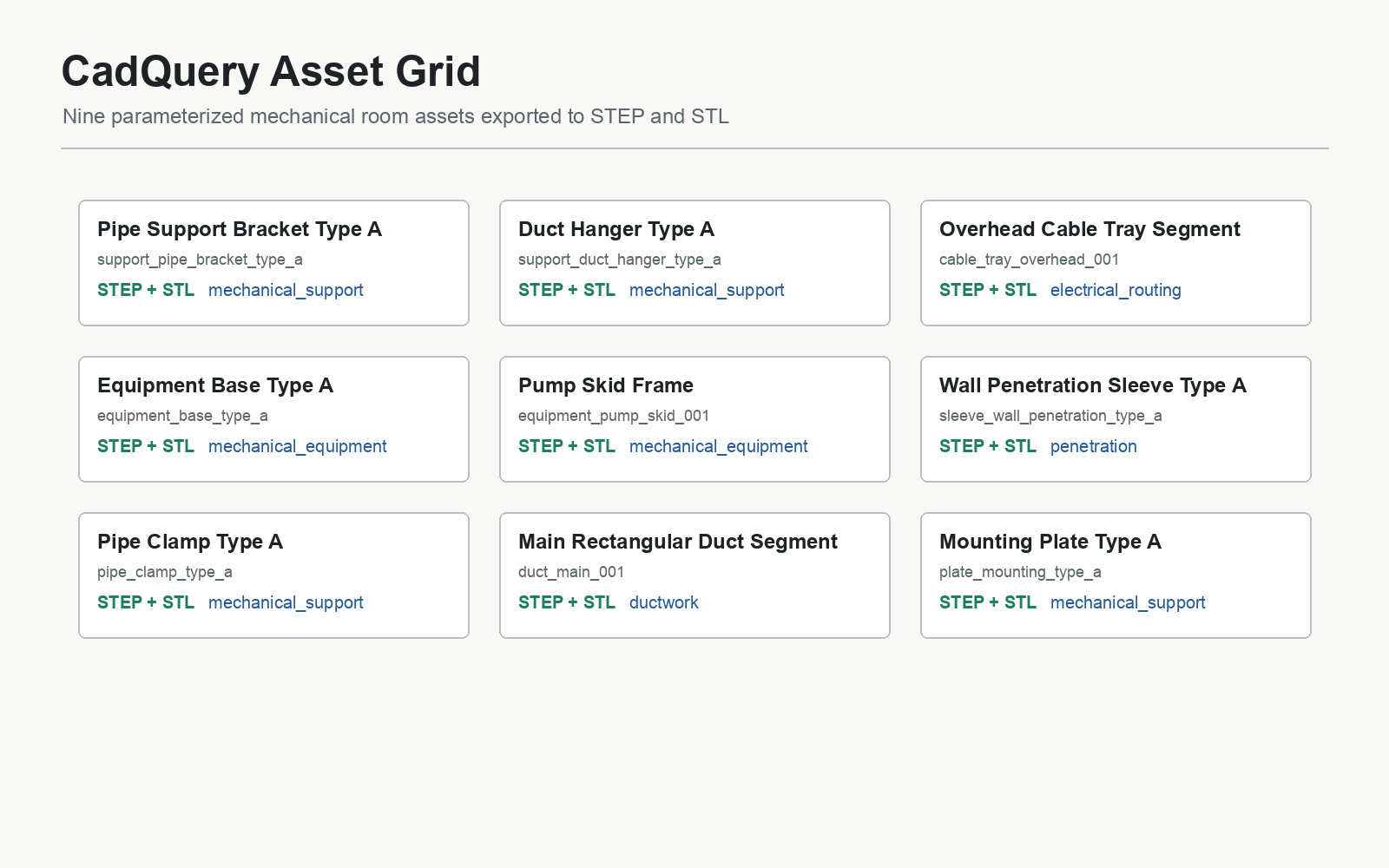

Reusable supports, ductwork, trays, clamps, plates, pads, and sleeves generated as STEP and STL assets.
OpenBIM validation

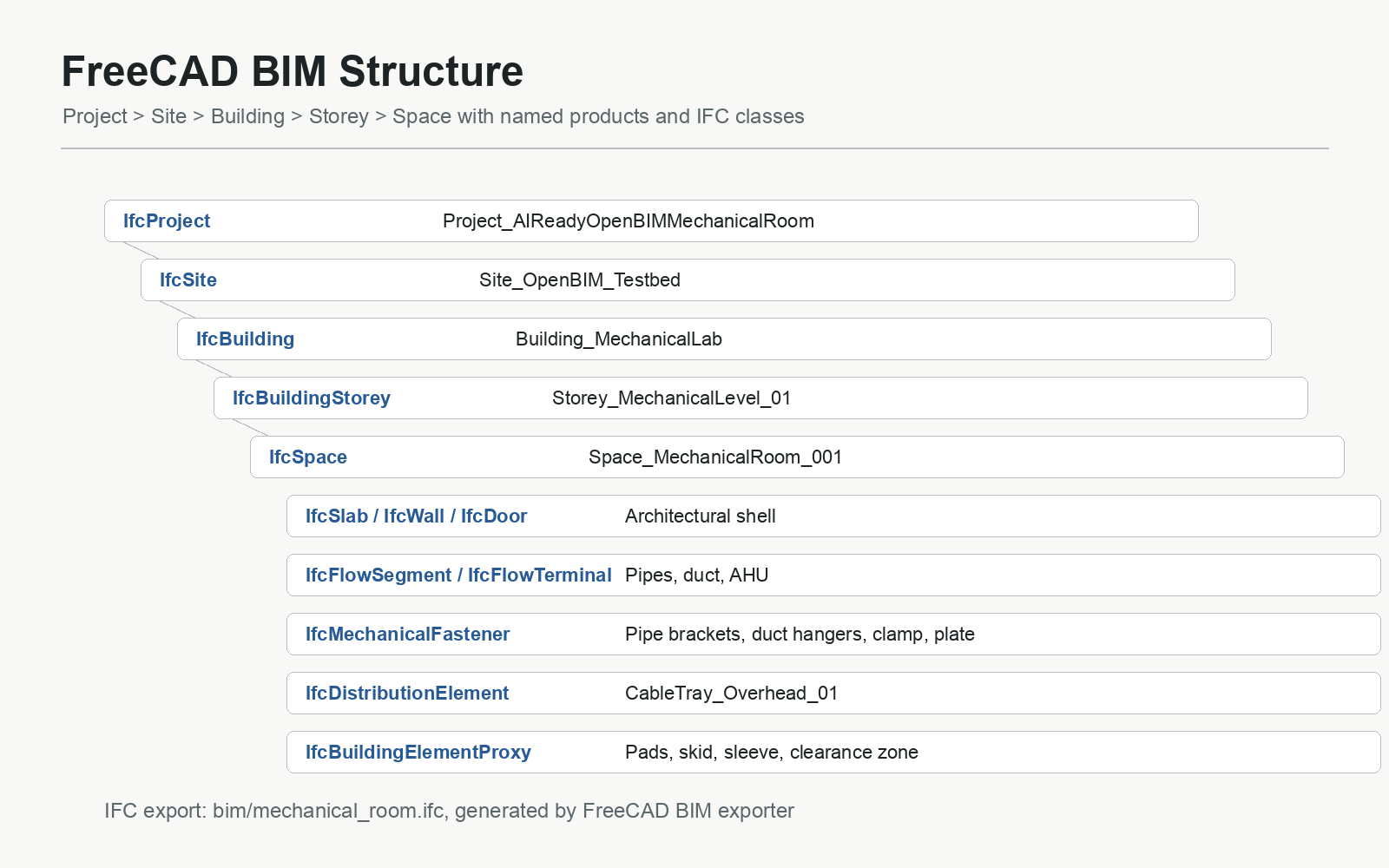

IFC4 export with project, site, building, storey, space, product geometry, manifest coverage, and automated checks.
2D review package

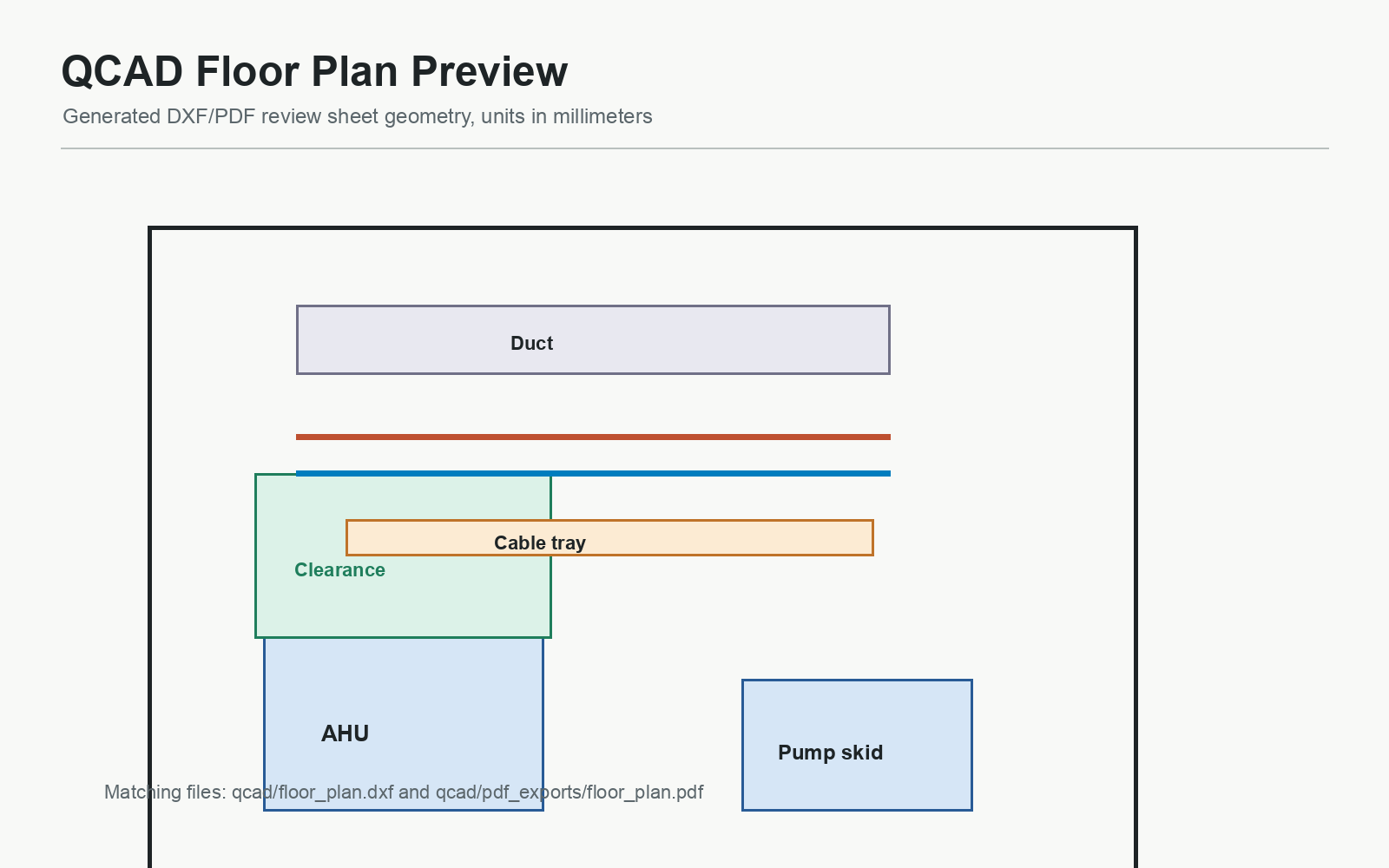

Layered DXF sheets and QCAD-exported PDFs for floor plan, equipment layout, pipe support, sleeve, and hanger details.
Visual evidence
The assets are inspectable, not just described.
Technical handoff
A reviewer can open the actual artifacts.
Validation surface
The repo checks itself.

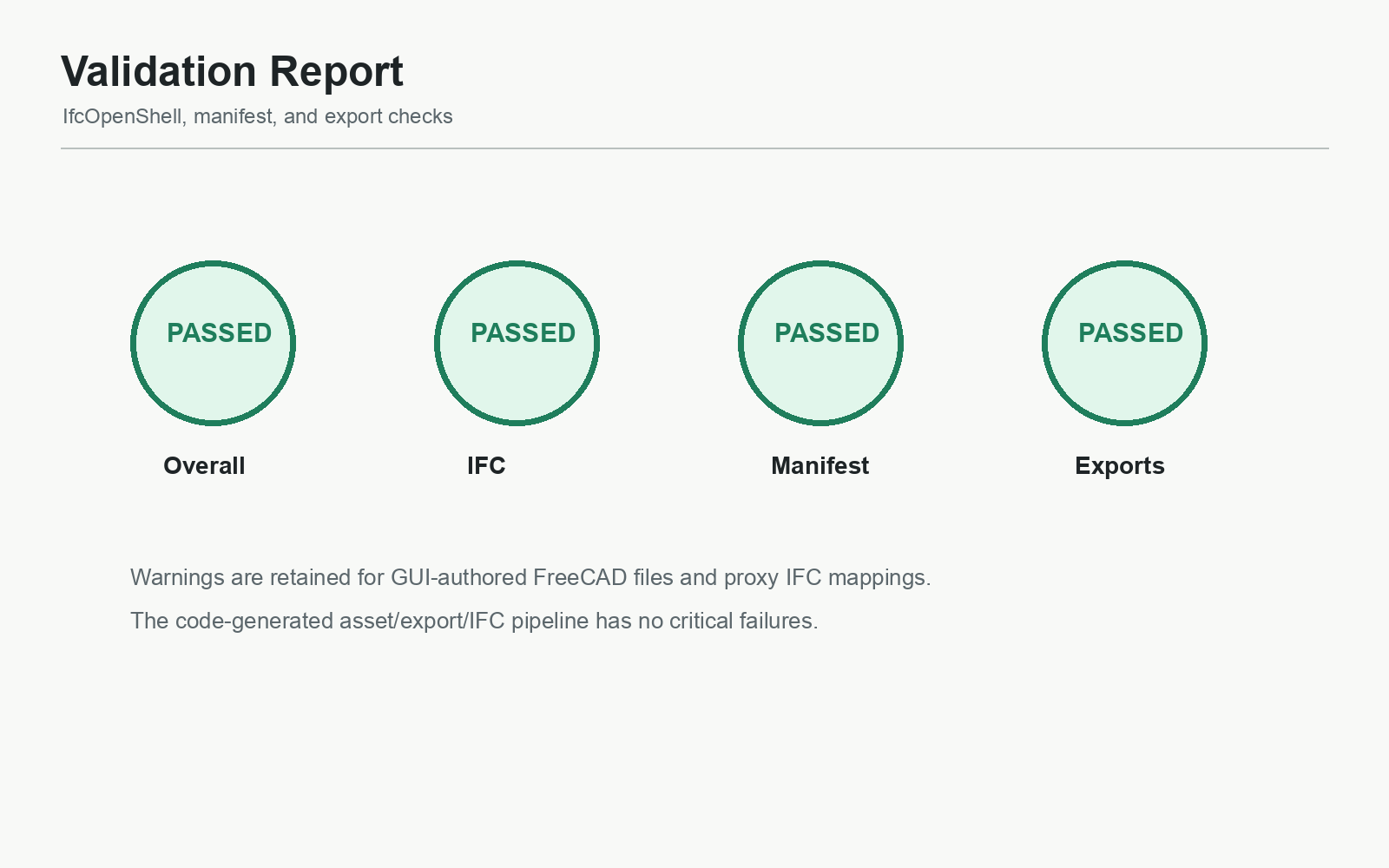

The final build passed IFC readability, manifest completeness, export presence, file-size checks, and required asset coverage.
validation_report.md
PASSED
IFC Validation: PASSED
Manifest Validation: PASSED
Exports Validation: PASSED
schema: IFC4
entity_count: 1032
product_count: 28
asset_count: 30
export_reference_count: 51Standalone repository
Built separately from this site, then linked as evidence.
The CAD/BIM package remains its own GitHub repository so source files, generated artifacts, validation reports, and future CAD iterations stay reviewable.
